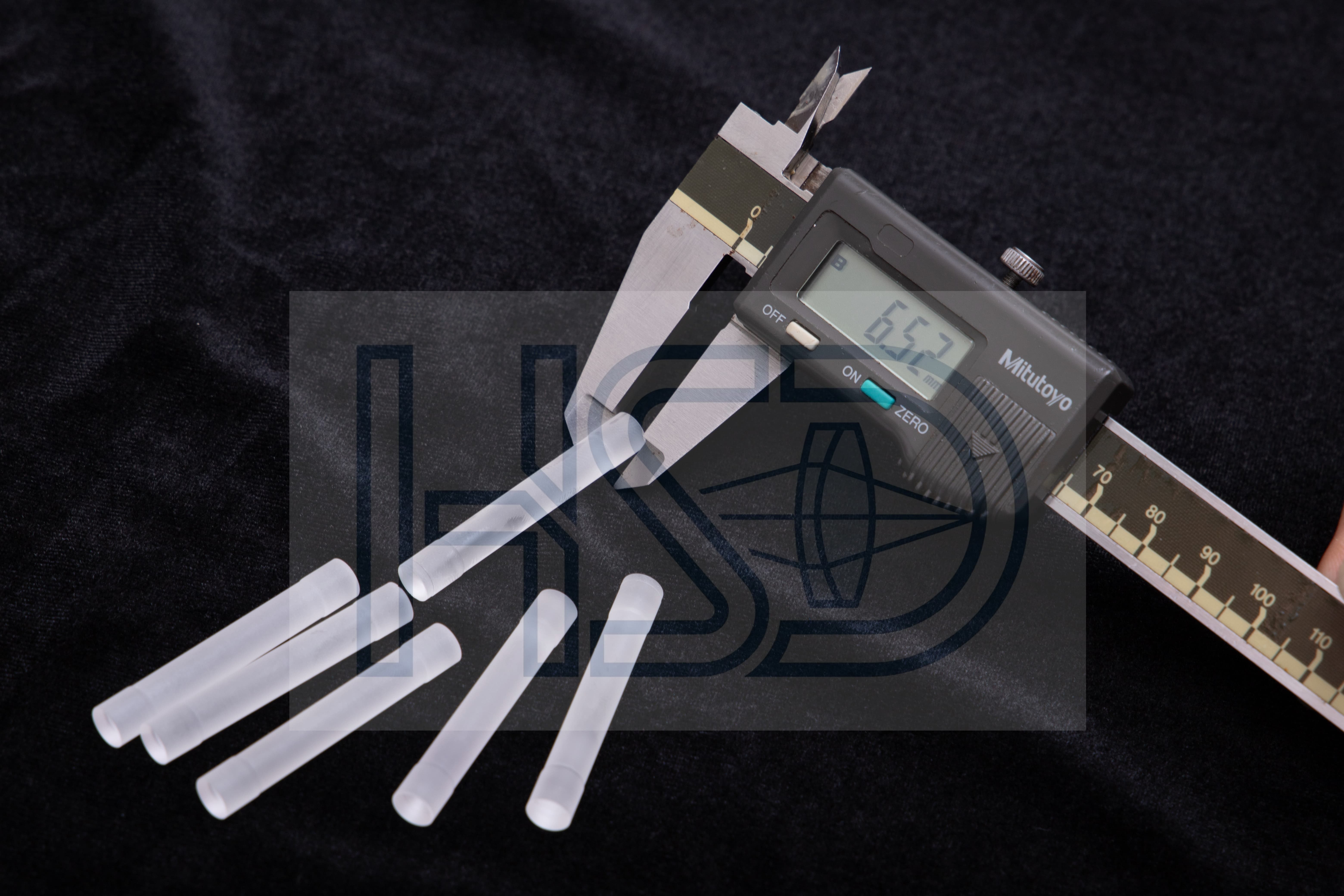

Standard Rod Lenses

Category :
Professional Rod Lenses
Browse number : ...
Release time : 2026-03-14

Detailed Description

Optical Parts Specification Sheet

Updated: Mar 24, 2026 | Objective Lens Group & Rod Lens

1. Objective Lens Group Specifications

Diameter (mm)	Lens Angle (°)	Field of View (°)	Remarks
1.78	30	80	-
1.85	0	80	-
1.88	30	80	-
1.98	30	80	-
1.78	0	80	-
1.88	0	80	-
1.98	0	80	-
2.68	30	100	Wide Angle
2.76	30	100	Wide Angle
2.68	30	70	-
2.76	30	70	-
2.76	70	68	-
2.68	0	70	-
2.68	0	100	-
2.76	0	70	-
2.76	0	100	-
2.76	12	70	-
2.76	30	70	-
6	0	80	-
6	30	80	-
6.5	0	80	-
6.5	30	80	-
6.5	30	80	-
0.8 Objective Lens Group	-	-	-
1.0 Objective Lens Group	-	-	-
1.2 Objective Lens Group	-	-	-

2. Rod Lens Specifications (v3.24)

Length (mm)	Diameter 1	Diameter 2	Diameter 3	Diameter 4	Diameter 5	Diameter 6	Diameter 7	Diameter 8	Diameter 9	Remarks
7.5	2.8	2.7	2	1.9	1.8	-	-	-	-	Single Bonded
11.4	2.1	2	1.9	1.8	1.7	1.4	1.2	-	-	Single Cemented
13.75	2.1	2	1.9	1.8	1.7	1.6	1.5	1.4	1.2	Double & Five Cemented
14.7	2.1	2	1.9	1.8	1.7	1.4	1.2	-	-	Single Bonded
15	2.1	2	1.9	1.8	1.7	1.6	1.4	1.2	-	Double Bonded
15.07	2.1	2	1.9	1.8	1.7	-	-	-	-	Double Cemented
15.3	2	1.9	1.8	-	-	-	-	-	-	Single Bonded
16	2.1	-	1.9	1.8	-	-	-	-	-	Single Cemented
16	2	-	1.9	1.8	-	-	-	-	-	Double Bonded
16.14	2.2	2	1.9	-	1.8	1.7	-	-	-	Single Cemented
16.5	2	-	1.9	-	1.8	-	-	-	-	Single Bonded
17.6	2.2	2.1	2	1.9	1.8	-	-	-	-	Single Cemented
18	2	1.9	1.8	-	-	-	-	-	-	Single Bonded
18.5	2.2	1.9	1.8	-	-	-	-	-	-	Single Cemented
19.4	2.2	2.1	2	1.9	1.8	-	-	-	-	Single Cemented
19.5	2.2	2.1	2	1.9	1.8	-	-	-	-	Single Cemented
20.2	2.2	2.1	2	1.9	1.8	-	-	-	-	Single Cemented
20.3	2.2	2.1	2	1.9	1.8	-	-	-	-	Double Cemented
21	2.8	2.7	2.2	2	-	-	-	-	-	Single Cemented
21.35	2.8	2.7	2	-	-	-	-	-	-	Single Chip
22.2	2.8	2.7	2.2	2.1	1.9	1.8	-	-	-	Single Cemented
22.4	6	5.5	3.8	3.5	2.8	2.7	-	-	-	Single Cemented (Special)
22.9	2.8	2.7	2.2	2.1	2	1.9	1.8	-	-	Single Cemented
22.9	2.8	2.7	2	-	-	-	-	-	-	Four Bonded
23.1	2.8	2.7	2.2	2.1	2	1.9	1.8	-	-	Double Cemented
24	2.8	2.7	2.2	2.1	2	1.9	1.8	-	-	Double Cemented (Uneven Ends)
24	2.8	2.7	2.2	2.1	2	1.9	1.8	-	-	Double Cemented (Even Ends)
24.3	3.5	2.8	2.7	2	1.9	1.8	-	-	-	Double Bonded
24.6	2.92	2.8	2.7	2	1.9	-	-	-	-	Single Bonded
24.7	2.92	2.8	2.7	2	1.9	-	-	-	-	Single Bonded
25.85	3.8	3.5	2.8	2.7	-	-	-	-	-	Double Cemented
26.5	2.8	2.7	2	1.9	-	-	-	-	-	Single Bonded
27	3.5	2.8	2.7	2.4	2.2	-	-	-	-	Single Cemented
27.65	3.8	3.5	3	2.8	2.7	-	-	-	-	Single Cemented
28	3.8	2.8	3.5	2.7	-	-	-	-	-	Single Chip
28	3.8	3.5	3	2.8	2.7	-	-	-	-	Single Cemented
28.55	3.5	2.8	2.7	-	-	-	-	-	-	Single Cemented
28.8	2.8	2.7	2.2	2.1	2	-	-	-	-	Single Cemented
29	3.5	3.2	3	2.8	2.7	-	-	-	-	Single Cemented
29	3.5	2.8	2.7	-	-	-	-	-	-	Four Cemented
29.5	3.5	3.2	3	2.8	2.7	-	-	-	-	Single Cemented
29.8	3.5	3.2	3	2.8	2.7	-	-	-	-	Single Cemented
46	6.6	6.55	6	5.5	-	-	-	-	-	Single Cemented (Concave Middle)
46	6.6	6.55	6	5.5	-	-	-	-	-	Single Cemented (Flat)
45	6.6	6.5	6	5.5	-	-	-	-	-	Single Cemented
65	7	6.5	6	5.5	5	-	-	-	-	Single Cemented
45	6.5	6	5.5	5	-	-	-	-	-	Double Cemented
45.5	6.5	6	5.5	5	-	-	-	-	-	Single Cemented
44.4	5.5	5	4.5	3.8	-	-	-	-	-	Double Cemented
46	6.55	6.5	6	5.5	-	-	-	-	-	Four Cemented
43	6	5.5	-	-	-	-	-	-	-	Double Cemented

Note: All specifications are updated as of Mar 24, 2026. Custom sizes and coatings are available upon request.
